Using your own OpencolorIO configuration in Unreal Engine
Nowadays, the use of ACEScg colorspace is taken for granted in any serious VFX production. ACEScg colorspace is used not only for consistency, but it's actually improves the render quality. To know more, Slick3d.art recommends to read the excellent book CG Cinematography, written by Chris Brejon. The book is available online on the author's website , and the reader can click here to directly access the ACEScg chapter.
Unreal Engine already has it's own ACES configuration and it's enable by default. However, Unreal Engine's ACES differ a little bit from the official ACES configuration. To know more about the Academy Color Encoding System click here .
Inside Unreal, the artist has the option to use his own OCIO configuration file. In this tutorial, it's being used the ACES 1.3 configuration. The reader can download the necessary files by clicking on this link .

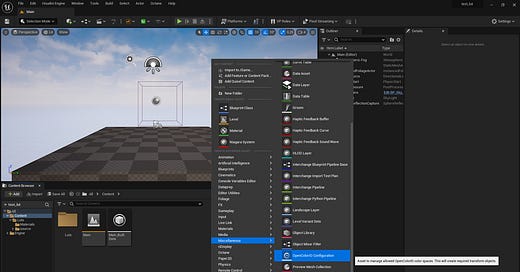

To use a specific OCIO config, right mouse click over the content browser, then go to miscellaneous > OpenColorIO Configuration.
In this example, I named it My_ocio. Double left-click over to open the configuration window.

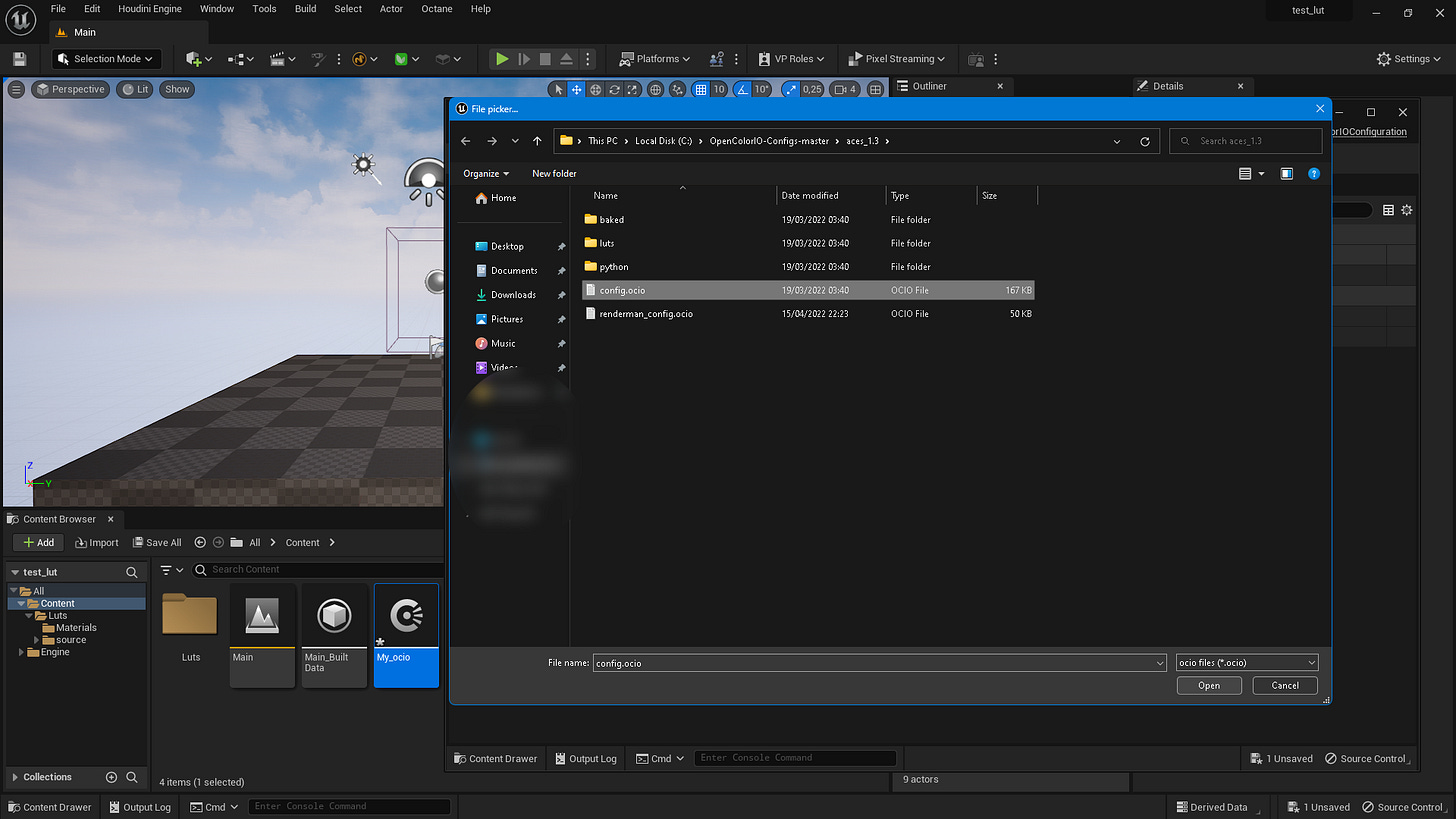

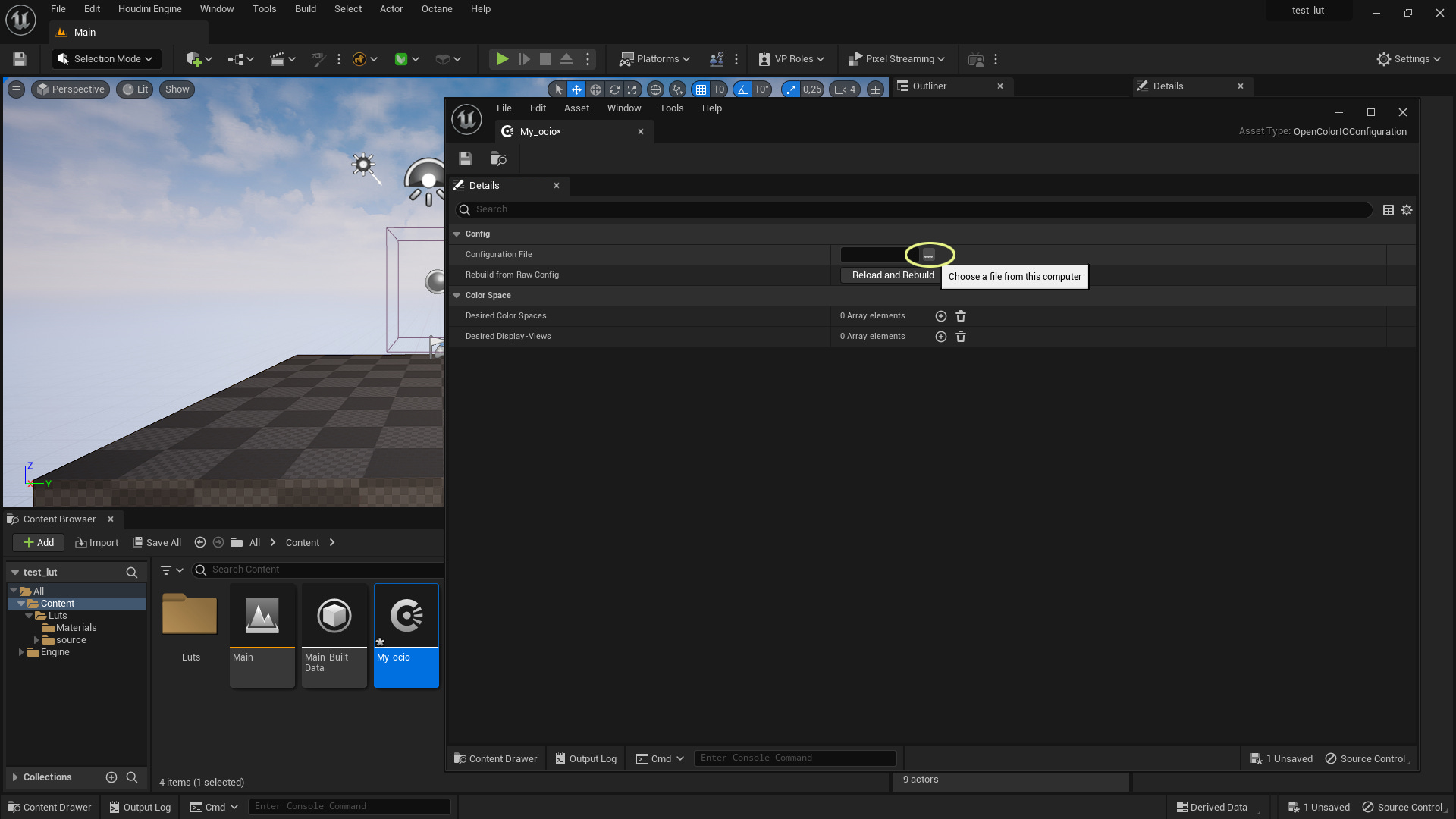

The first thing to do, is to assign a configuration file. Here the artist has to assign the config.ocio file, available in the downloaded configuration or created by the artist.

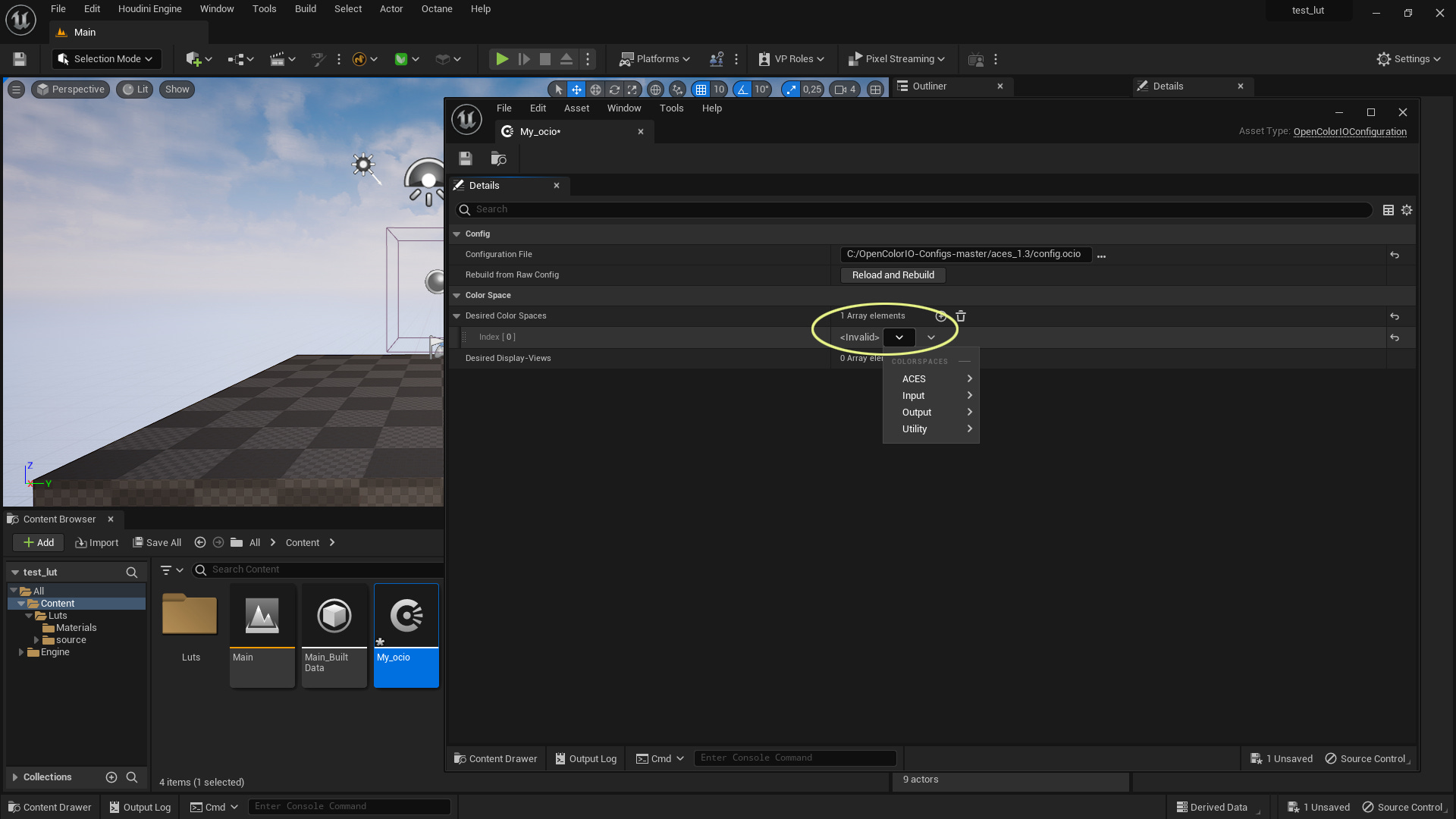

Now, it’s necessary to specify which colorspace will be available to use and display view as well. For this, add a new array element and assign a specific colorspace / display-view to each created array.
Here, it is a common configuration:

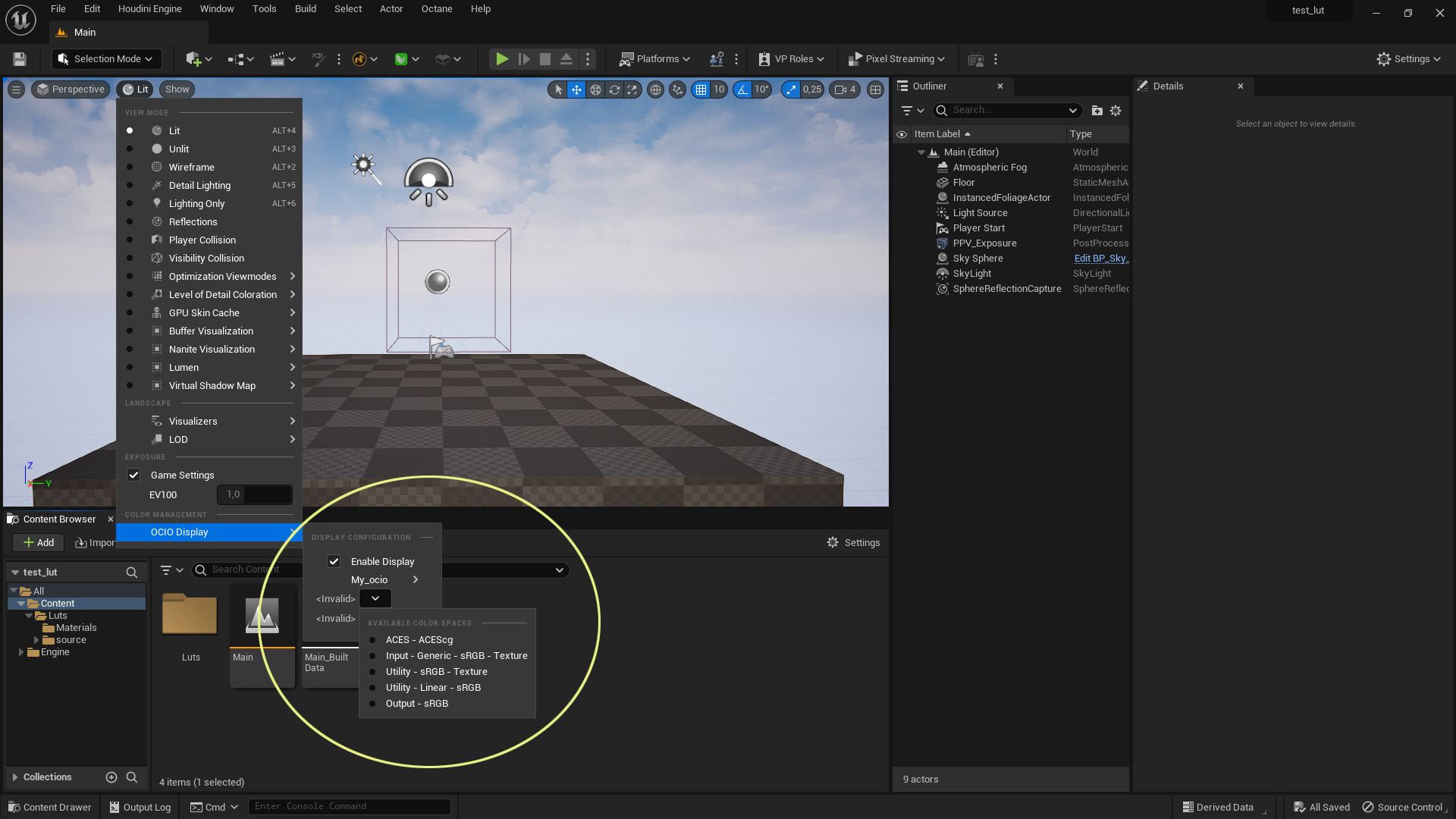

In the viewport, click on Lit, go to OCIO Display, then choose the OpenColorIO asset.
Then, choose the colorspace and display view.
The correct configuration is ACES - ACEScg as colorspace, and ACES - sRGB as display view:
