OCIO config file in Blender Part 1 - Adding LUT file looks to your config.

Blender 4.0 release introduced a new color space called AgX, which is very close to the ACEScg color space. The advantage to work with Agx or ACEScg is that these color spaces avoids hot spots in the final render. The treatment of intensive light and high level exposure are much better than the Filmic color space. Another great advantage is the consistency when using an OpenColorIO config file. It's easier to build a pipeline upon it and, in case of need of modification in the future, it's very easy to adapt or switch to another color space: it's only needed to making changes to the ocio config file.

Unfortunately, Blender has no native option to load LUT files such .cube or .3dl. Up to now, the Blender artist needs to modify the config.ocio file to be able to use the desired LUT directly inside Blender. Fortunately, it's very easy to add a custom LUT file in the Looks roll out. This tutorial is about that. In a future tutorial (the second part), Slick3d.art will cover how to do more profound changes in the config.ocio file.

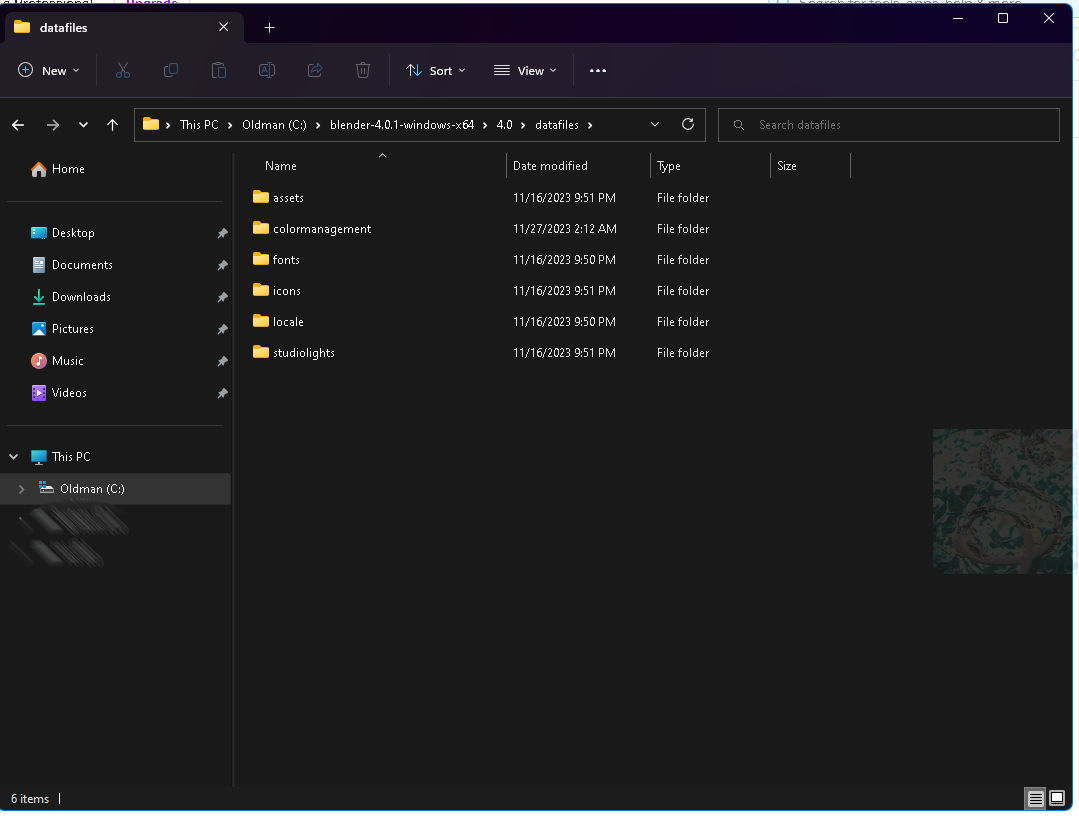

The Blender color management config files are inside the datafiles folder. It's located at the <the Blender installation folder>/<Blender version>/datafiles. On this example, the path is C:\blender-4.0.1-windows-x64\4.0\datafiles. Of course, the path will be different regarding where the artist installed Blender.

The ocio.config file is inside the colormanagement folder.

The content of the colormanagement folder

The config.ocio file is a simple text file which can be opened inside any text editor. inside the file, the artist will see the colorspaces and the Looks configuration. In this tutorial we are concerned with the Looks section.

The "colorspaces" section.

The "looks" section.

Note that the indentation is mandatory. If the word isn't obeying the indentation, Blender will raise a colorspace error when loading and will set up only the standard colorspace.

For the best result, it's recommended to use a LUT through a Log transform. In this example, a LUT with the color palette from the movie Alien (1979), will be added to the Look option. The name is the choice of the artist. However, process_space must be AgX Log, if the artist is setting the LUT to be use with the AgX colorspace.

- !<Look>

name: AgX - Movie Alien

process_space: AgX Log

description: Alien movie color palette

transform: !<GroupTransform>

children:

- !<GradingPrimaryTransform>

style: log

- !<FileTransform> {src: filmic_to_0-60_1-04.spi1d, interpolation: linear}

- !<FileTransform> {src: filmic_to_0-70_1-03.spi1d, interpolation: linear, direction: inverse}

- !<FileTransform> {src: Alien-LOG.cube, interpolation: Linear}

Note the last line: Alien-LOG.cube is the name of the LUT file but, wait a minute: how Blender will know where the LUT file is located? For this, at the beginning of the config.ocio file, there is a parameter called search_path that contains all the folders that will be look at when Blender starts, looking for all LUTs that are available. Colon (:) is used to split each name folder.

search_path: "luts:filmic" defines two folders to be looking at: the "luts" folder and the "filmic" folder.

In this example, the config was simplified (in the part 2 it'll be shown another way to do it). A folder named cinematic was created inside the colormanagement folder, containing all LUT files that can be used to make a look.

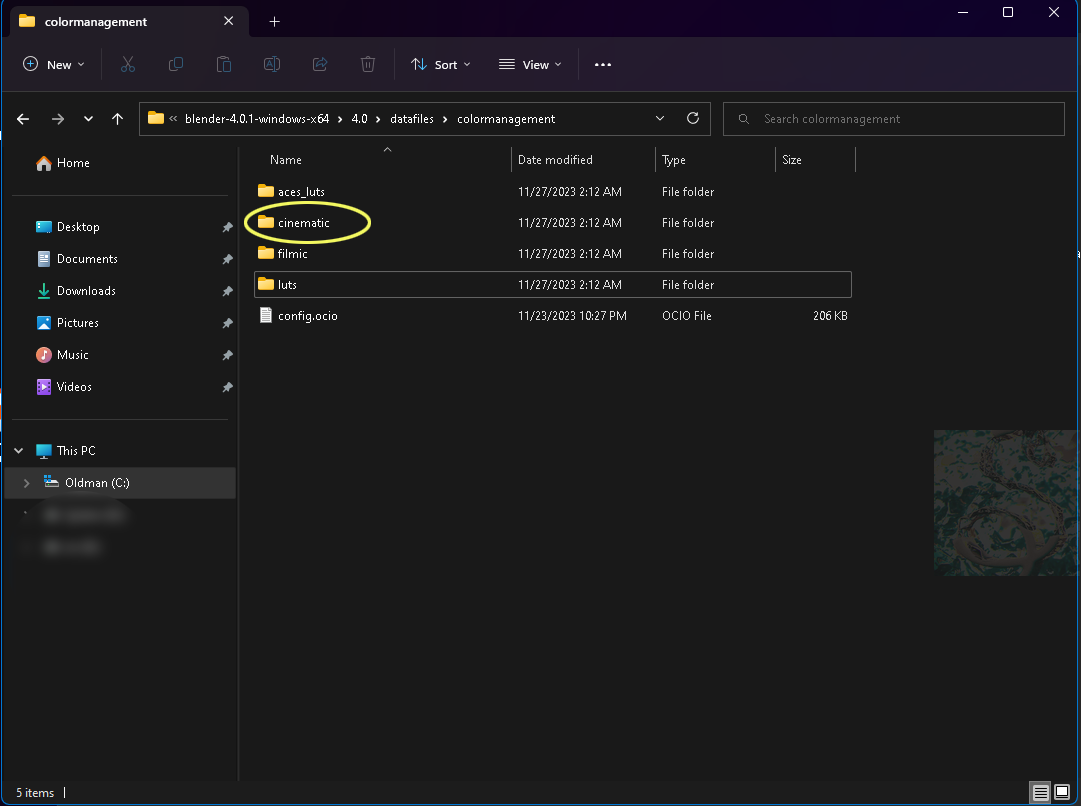

The "cinematic" folder contains all .cube files.

Then, the new search_path will be: search_path: "luts:filmic:cinematic".

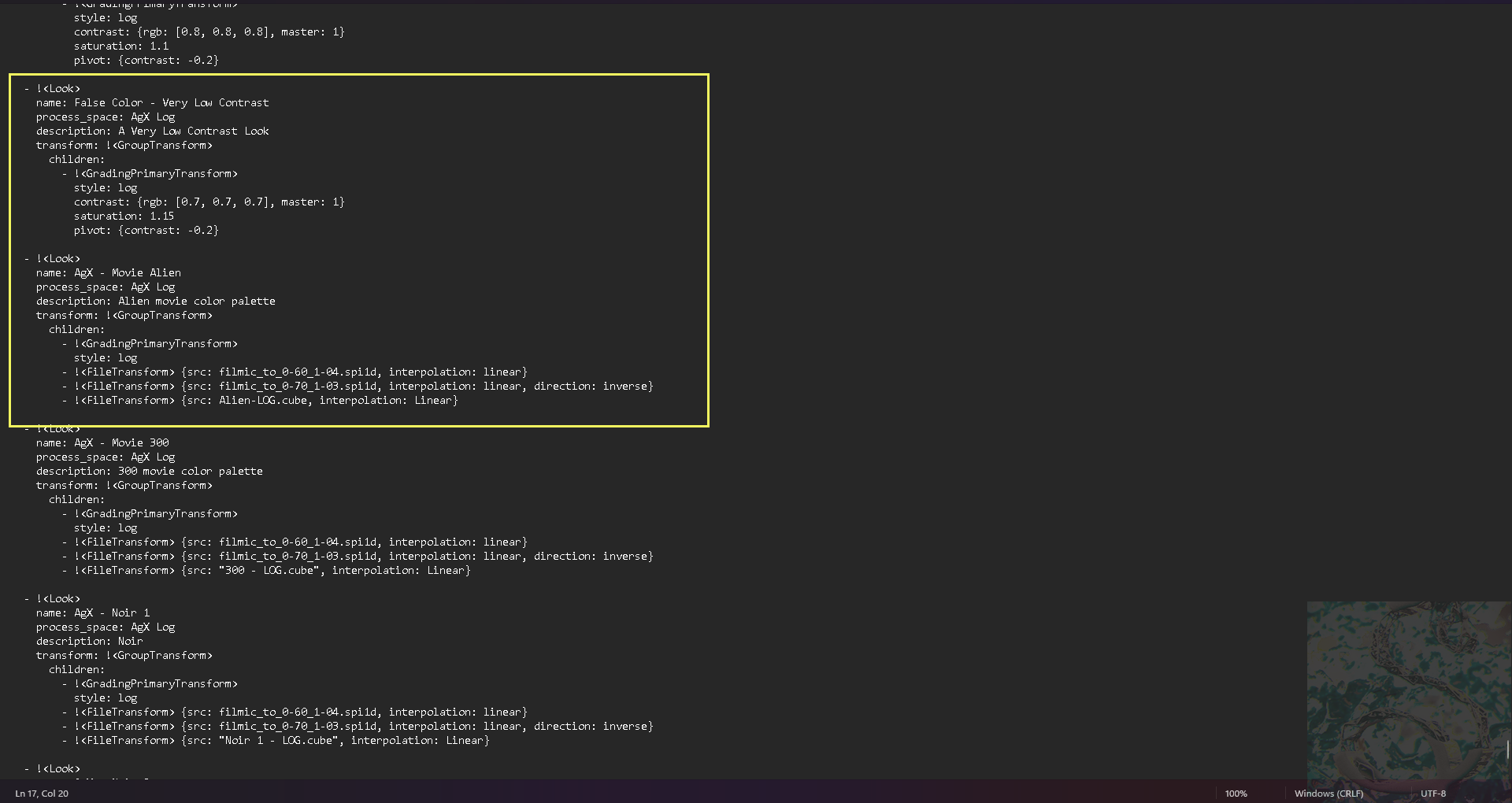

The look entry was put right below the last one (False Color). Again, the correct indentation is mandatory.

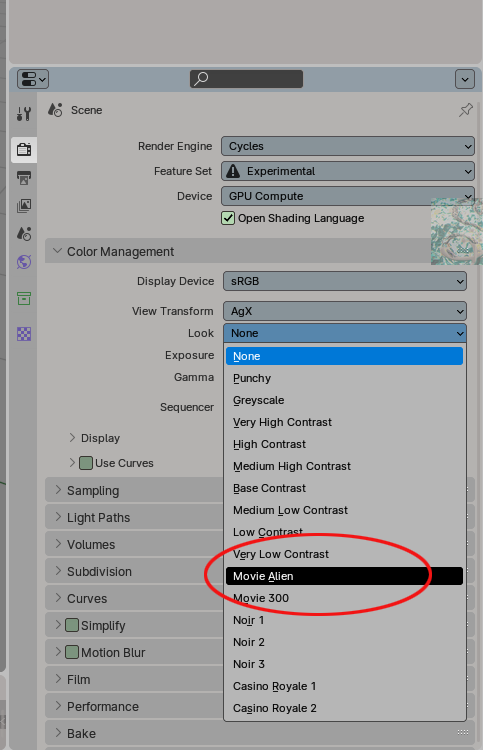

Now, the LUT is available for use in the Looks roll out:

The same process can be used in previous Blender version. Actually, Blender 4 OpenColorIO configuration can be used in Blender 3.X., but this will be shown in the part 2 of this tutorial.

This image was render using AgX colorspace with the look "Punchy".

This one was render using ACEScg colorspace. I really prefer the ACEScg look.

This is a render in AgX colorspace using as Look a LUT with the 300 movie color palette.

This one uses the same 300 movie LUT as Look, but was render in ACEScg colorspace. The AgX colorspace saturates a lot more the image, as can be seen comparing this image with the one above.

This render used AgX colorspace with the Look using a LUT with the "Alien" movie color palette.

The same "Alien" LUT, but now rendered in ACEScg colorspace.

Which colorspace do you prefer? The choice is all yours, of course. For my work, I'll keep using ACEScg though.
